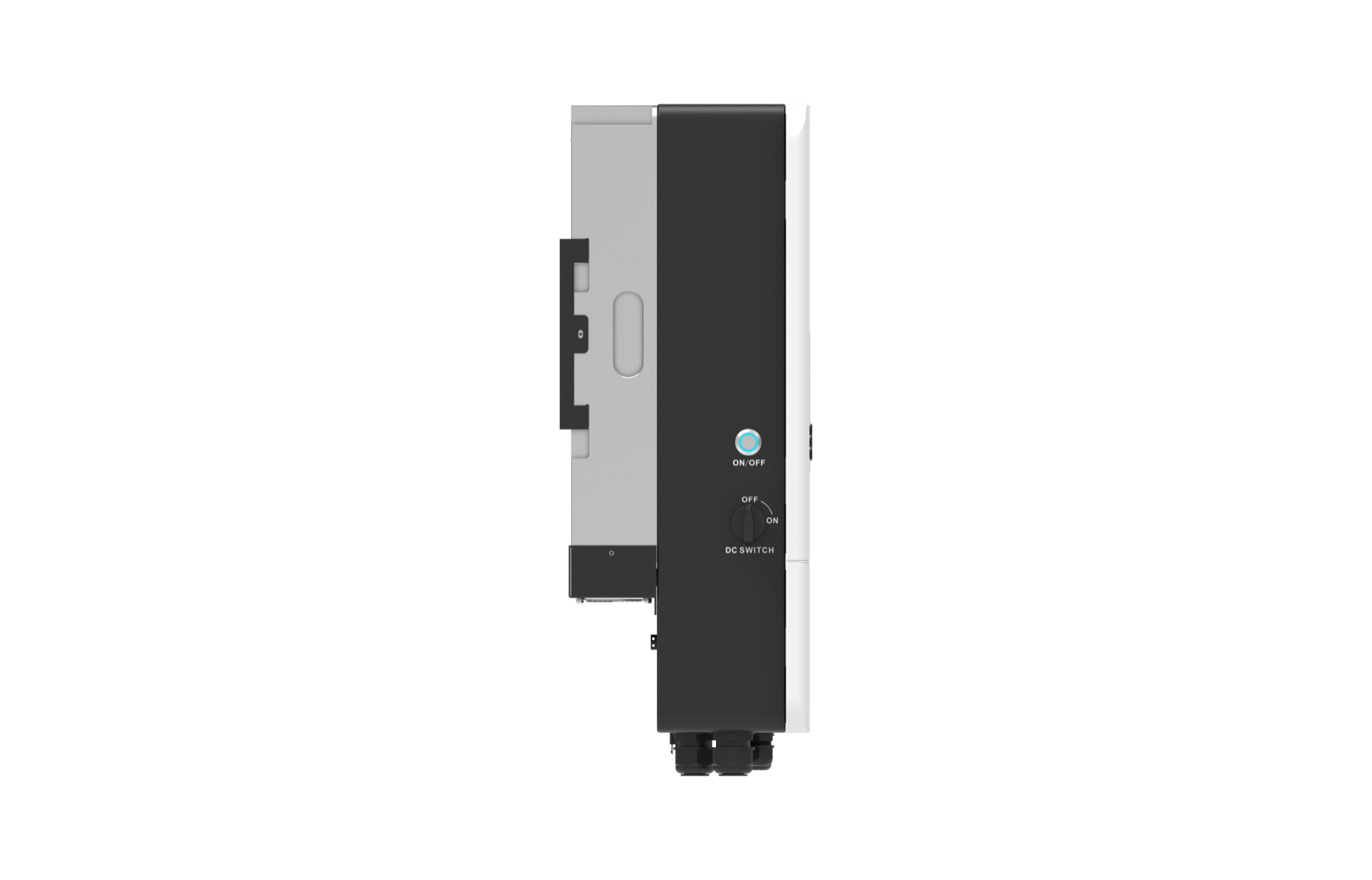

SG05LP3-EU-SM2 family view shared by the 8 / 12 kW configurations.
Supplier-reference photography. Confirm the final equipment appearance and included accessories with your quotation.
Technical reference SUN-12K-SG05LP3-EU-SM2
A low-voltage battery hybrid platform for three-phase properties. Coordinate solar production, battery scheduling and the distribution of site loads to build an installation around real operating requirements and priorities.
Configuration, availability, certification scope and commercial terms are confirmed at quotation.
Values below follow the referenced model or explicitly stated model family. Review the final datasheet, rated conditions and supply scope before procurement.
Deye — official three-phase LV hybrid specifications
Reference model: SUN-12K-SG05LP3-EU-SM2
Reviewed: 2026-10-15
Dimensions exclude connectors and brackets; output distribution limits require project review.
| Rated AC input / output | 12,000 W |
|---|---|
| Nominal AC voltage | 220 / 380 V or 230 / 400 V |
| Grid frequency | 50 / 60 Hz |
| Battery voltage range | 40–60 V |
| Max. charge / discharge current | 240 A |
| Max. PV input power | 19,200 W |
| Max. PV input voltage | 800 V |
| MPPT voltage range | 200–650 V |
| MPPT / strings per tracker | 2 / 2+2 |
| Max. conversion efficiency | 97.6% |
| Ingress protection | IP65 |
| Communication | Wi-Fi, RS485, CAN |
| Dimensions (W × H × D) | 386 × 660 × 250 mm |
| Weight | 35.2 kg |
| Cooling | Intelligent air cooling |
Published reference values are not a substitute for the final selected-model datasheet and project design.
The complete system must account for site loads, electrical interfaces, environmental limits and local installation requirements.
Explore the planning guideShare your country, quantity, electrical requirements, installation environment and delivery plan. Ask for the final datasheet and supply scope for this reference.
