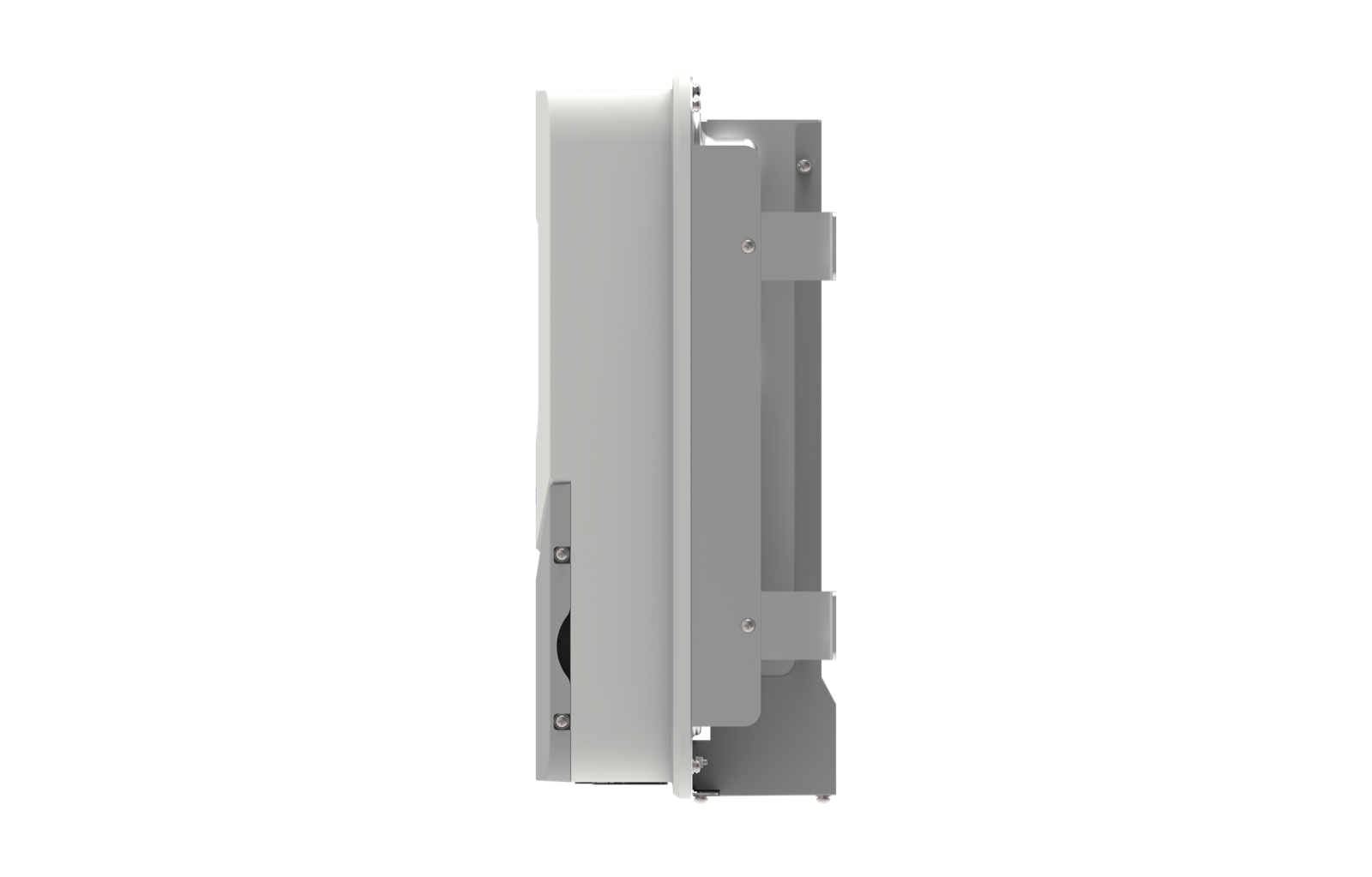

OG03LP1-EU family view shared by the 5 / 8.8 kW configurations.
Supplier-reference photography. Confirm the final equipment appearance and included accessories with your quotation.
Technical reference SUN-5K-OG03LP1-EU-AM2
A compact conversion platform for battery-backed solar supply where grid connection is limited. Plan selected loads, battery capacity and PV string voltage together before defining the final installation.
Configuration, availability, certification scope and commercial terms are confirmed at quotation.
Values below follow the referenced model or explicitly stated model family. Review the final datasheet, rated conditions and supply scope before procurement.
Deye — official off-grid inverter specifications
Reference model: SUN-5K-OG03LP1-EU-AM2
Reviewed: 2026-10-15
Specifications refer to the exact listed model; photograph shows its manufacturer product family.
| Rated AC output | 5,000 W |
|---|---|
| Output voltage | 230 V, L+N+PE |
| Output frequency | 50 / 60 Hz |
| Battery voltage range | 40–60 V |
| Max. charge / discharge current | 120 A |
| Max. PV input power | 8,000 W |
| Max. PV input voltage | 500 V |
| MPPT voltage range | 150–425 V |
| MPPT / strings per tracker | 2 / 1+1 |
| Peak output | 2 × rated power for 10 s |
| Max. conversion efficiency | 97.6% |
| Ingress protection | IP65 |
| Dimensions (W × H × D) | 323 × 424 × 176 mm |
| Weight | 8.6 kg |
| Operating temperature | −40 to +60 °C; derating above +45 °C |
Published reference values are not a substitute for the final selected-model datasheet and project design.
The complete system must account for site loads, electrical interfaces, environmental limits and local installation requirements.
Explore the planning guideShare your country, quantity, electrical requirements, installation environment and delivery plan. Ask for the final datasheet and supply scope for this reference.
