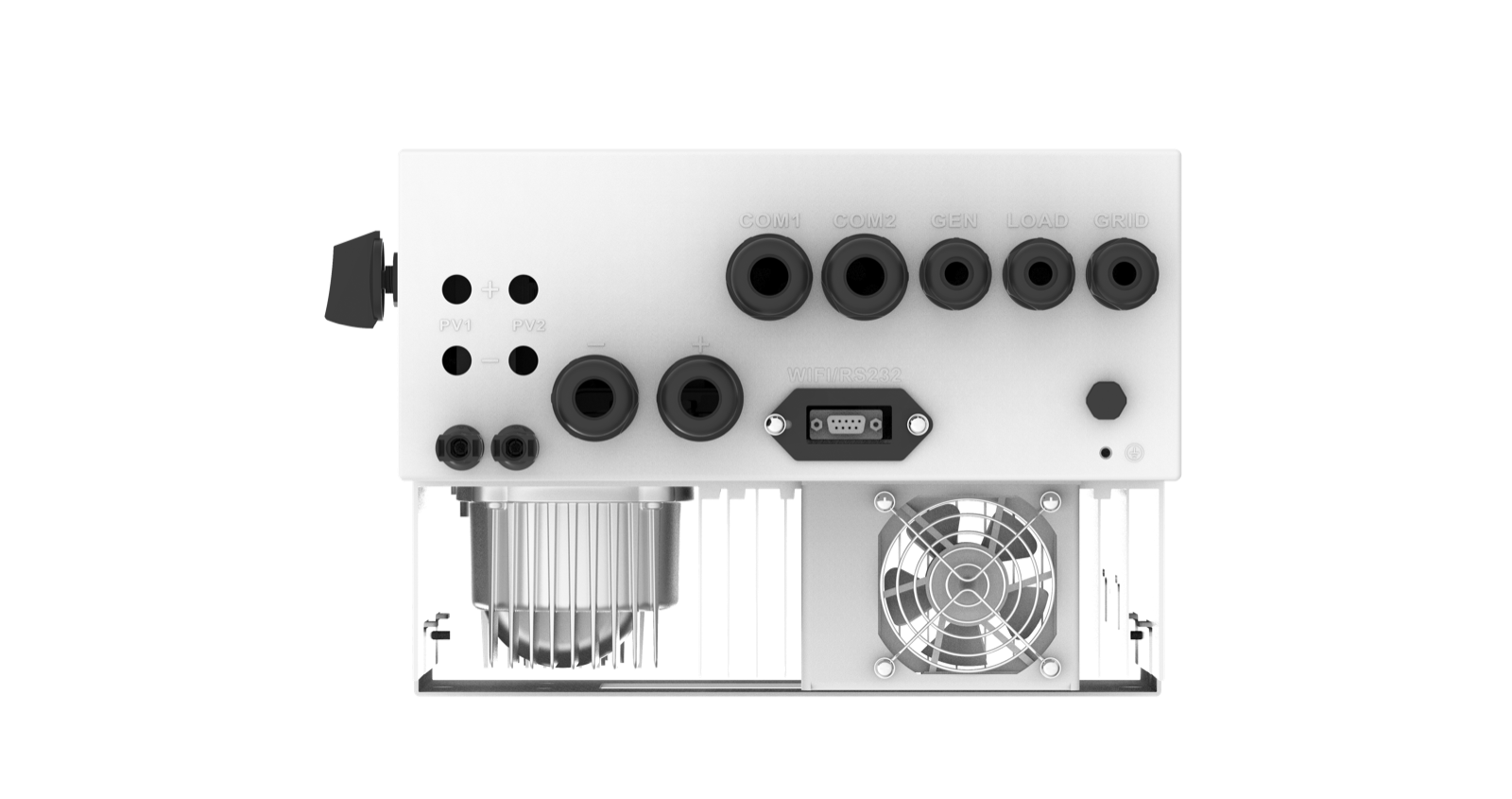

SG04LP1-EU family view shared by the 3.6 / 6 kW configurations.
Supplier-reference photography. Confirm the final equipment appearance and included accessories with your quotation.
Technical reference SUN-6K-SG04LP1-EU
Combine rooftop generation, a low-voltage battery and single-phase site loads in one hybrid platform. A practical starting point for homes and smaller commercial sites seeking flexible energy use.
Configuration, availability, certification scope and commercial terms are confirmed at quotation.
Values below follow the referenced model or explicitly stated model family. Review the final datasheet, rated conditions and supply scope before procurement.
Deye — official single-phase hybrid specifications
Reference model: SUN-6K-SG04LP1-EU
Reviewed: 2026-10-15
Dimensions exclude connectors and brackets. Regional configuration must be confirmed.
| Rated AC input / output | 6,000 W |
|---|---|
| Nominal AC voltage | 220 / 230 V, L+N+PE |
| Grid frequency | 50 / 60 Hz |
| Battery voltage range | 40–60 V |
| Max. charge / discharge current | 135 A |
| Max. PV input power | 9,600 W |
| Max. PV input voltage | 500 V |
| MPPT voltage range | 150–425 V |
| MPPT / strings per tracker | 2 / 1+1 |
| Max. conversion efficiency | 97.6% |
| Ingress protection | IP65 |
| Communication | Wi-Fi, RS485, CAN |
| Dimensions (W × H × D) | 330 × 433 × 228 mm |
| Weight | 17 kg |
| Operating temperature | −40 to +60 °C; derating above +45 °C |
Published reference values are not a substitute for the final selected-model datasheet and project design.
The complete system must account for site loads, electrical interfaces, environmental limits and local installation requirements.
Explore the planning guideShare your country, quantity, electrical requirements, installation environment and delivery plan. Ask for the final datasheet and supply scope for this reference.
